 规格：

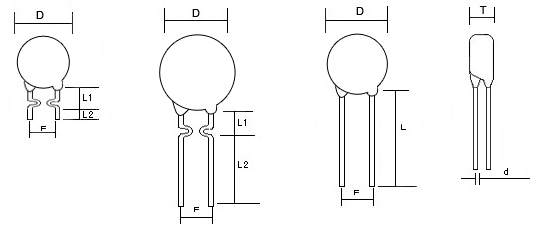

外形结构图
主要参数及尺寸
注：若非特别说明，额定零功率电阻允许偏差为±20%。
|
型号
Type |
额定阻值(Ω)
Rated Resistance |
最大稳态电流(A)
Max. Steady State Current |
D |
L |
F |
Dimensions(Unit:mm) |
|
Dmax |
Lmin |
F±1 |
Tmax |
d |
| 5D-5 |
5 |
1 |
6.5 |
25 |
5.0/2.5 |
5 |
0.55/0.45 |
| 10D-5 |
10 |
0.7 |
6.5 |
25 |
5.0/2.5 |
5 |
0.55/0.45 |
| 20D-5 |
20 |
0.5 |
6.5 |
25 |
5.0/2.5 |
5 |
0.55/0.45 |
| 5D-7 |
5 |
2 |
8.5 |
25 |
5.0 |
5 |
0.55 |
| 8D-7 |
8 |
1 |
8.5 |
25 |
5.0 |
5 |
0.55 |
| 10D-7 |
10 |
1 |
8.5 |
25 |
5.0 |
5 |
0.55 |
| 12D-7 |
12 |
1 |
8.5 |
25 |
5.0 |
5 |
0.55 |
| 16D-7 |
16 |
0.7 |
8.5 |
25 |
5.0 |
5 |
0.55 |
| 20D-7 |
20 |
0.6 |
8.5 |
25 |
5.0 |
5 |
0.55 |
| 22D-7 |
22 |
0.6 |
8.5 |
25 |
5.0 |
5 |
0.55 |
| 33D-7 |
33 |
0.5 |
8.5 |
25 |
5.0 |
5 |
0.55 |
| 3D-9 |
3 |
4 |
10.5 |
25 |
7.5/5.0 |
5.5 |
0.78/0.55 |
| 4D-9 |
4 |
4 |
10.5 |
25 |
7.5/5.0 |
5.5 |
0.78/0.55 |
| 5D-9 |
5 |
3 |
10.5 |
25 |
7.5/5.0 |
5.5 |
0.78/0.55 |
| 6D-9 |
6 |
2 |
10.5 |
25 |
7.5/5.0 |
5.5 |
0.78/0.55 |
| 8D-9 |
7 |
2 |
10.5 |
25 |
7.5/5.0 |
5.5 |
0.78/0.55 |
| 10D-9 |
10 |
2 |
10.5 |
25 |
7.5/5.0 |
5.5 |
0.78/0.55 |
| 12D-9 |
12 |
1 |
10.5 |
25 |
7.5/5.0 |
5.5 |
0.78/0.55 |
| 16D-9 |
16 |
1 |
10.5 |
25 |
7.5/5.0 |
5.5 |
0.78/0.55 |
| 20D-9 |
20 |
1 |
10.5 |
25 |
7.5/5.0 |
5.5 |
0.78/0.55 |
| 22D-9 |
22 |
1 |
10.5 |
25 |
7.5/5.0 |
5.5 |
0.78/0.55 |
| 30D-9 |
30 |
1 |
10.5 |
25 |
7.5/5.0 |
5.5 |
0.78/0.55 |
| 33D-9 |
33 |
1 |
10.5 |
25 |
7.5/5.0 |
5.5 |
0.78/0.55 |
| 50D-9 |
50 |
1 |
10.5 |
25 |
7.5/5.0 |
5.5 |
0.78/0.55 |
| 60D-9 |
60 |
0.8 |
10.5 |
25 |
7.5/5.0 |
5.5 |
0.78/0.55 |
| 2.5D-11 |
2.5 |
5 |
12.5 |
25 |
7.5/5.0 |
5.5 |
0.78 |
| 3D-11 |
3 |
5 |
12.5 |
25 |
7.5/5.0 |
5.5 |
0.78 |
| 4D-11 |
4 |
4 |
12.5 |
25 |
7.5/5.0 |
5.5 |
0.78 |
| 5D-11 |
5 |
4 |
12.5 |
25 |
7.5/5.0 |
5.5 |
0.78 |
| 6D-11 |
6 |
3 |
12.5 |
25 |
7.5/5.0 |
5.5 |
0.78 |
| 8D-11 |
8 |
3 |
12.5 |
25 |
7.5/5.0 |
5.5 |
0.78 |
| 10D-11 |
10 |
3 |
12.5 |
25 |
7.5/5.0 |
5.5 |
0.78 |
| 12D-11 |
12 |
2 |
12.5 |
25 |
7.5/5.0 |
5.5 |
0.78 |
| 16D-11 |
16 |
2 |
12.5 |
25 |
7.5/5.0 |
5.5 |
0.78 |
| 20D-11 |
20 |
2 |
12.5 |
25 |
7.5/5.0 |
5.5 |
0.78 |
| 22D-11 |
22 |
2 |
12.5 |
25 |
7.5/5.0 |
5.5 |
0.78 |
| 30D-11 |
30 |
1.5 |
12.5 |
25 |
7.5/5.0 |
5.5 |
0.78 |
| 33D-11 |
33 |
1.5 |
12.5 |
25 |
7.5/5.0 |
5.5 |
0.78 |
| 1.3D-13 |
1.3 |
7 |
14.5 |
25 |
7.5 |
6 |
0.78 |
| 1.5D-13 |
1.5 |
6 |
14.5 |
25 |
7.5 |
6 |
0.78 |
| 3D-13 |
3 |
6 |
14.5 |
25 |
7.5 |
6 |
0.78 |
| 4D-13 |
4 |
5 |
14.5 |
25 |
7.5 |
6 |
0.78 |
| 5D-13 |
5 |
5 |
14.5 |
25 |
7.5 |
6 |
0.78 |
| 6D-13 |
6 |
4 |
14.5 |
25 |
7.5 |
6 |
0.78 |
| 7D-13 |
7 |
4 |
14.5 |
25 |
7.5 |
6 |
0.78 |
| 8D-13 |
8 |
4 |
14.5 |
25 |
7.5 |
6 |
0.78 |
| 10D-13 |
10 |
4 |
14.5 |
25 |
7.5 |
6 |
0.78 |
| 12D-13 |
12 |
3 |
14.5 |
25 |
7.5 |
6 |
0.78 |
| 15D-13 |
15 |
3 |
14.5 |
25 |
7.5 |
6 |
0.78 |
| 16D-13 |
16 |
3 |
14.5 |
25 |
7.5 |
6 |
0.78 |
| 20D-13 |
20 |
3 |
14.5 |
25 |
7.5 |
6 |
0.78 |
| 30D-13 |
30 |
2.5 |
14.5 |
25 |
7.5 |
6 |
0.78 |
| 47D-13 |
47 |
2 |
14.5 |
25 |
7.5 |
6 |
0.78 |
| 1.3D-15 |
1.3 |
8 |
16.5 |
25 |
7.5 |
6 |
0.78 |
| 1.5D-15 |
1.8 |
8 |
16.5 |
25 |
7.5 |
6 |
0.78 |
| 3D-15 |
3 |
7 |
16.5 |
25 |
7.5 |
6 |
0.78 |
| 5D-15 |
5 |
6 |
16.5 |
25 |
7.5 |
6 |
0.78 |
| 6D-15 |
6 |
5 |
16.5 |
25 |
7.5 |
6 |
0.78 |
| 7D-15 |
7 |
5 |
16.5 |
25 |
7.5 |
6 |
0.78 |
| 8D-15 |
8 |
5 |
16.5 |
25 |
7.5 |
6 |
0.78 |
| 10D-15 |
10 |
5 |
16.5 |
25 |
7.5 |
6 |
0.78 |
| 12D-15 |
12 |
4 |
16.5 |
25 |
7.5 |
6 |
0.78 |
| 15D-15 |
15 |
4 |
16.5 |
25 |
7.5 |
6 |
0.78 |
| 16D-15 |
16 |
4 |
16.5 |
25 |
7.5 |
6 |
0.78 |
| 20D-15 |
20 |
4 |
16.5 |
25 |
7.5 |
6 |
0.78 |
| 30D-15 |
30 |
3 |
16.5 |
25 |
7.5 |
6 |
0.78 |
| 33D-15 |
33 |
3 |
16.5 |
25 |
7.5 |
6 |
0.78 |
| 47D-15 |
47 |
3 |
16.5 |
25 |
7.5 |
6 |
0.78 |
| 50D-15 |
50 |
3 |
16.5 |
25 |
7.5 |
6 |
0.78 |
| 0.7D-20 |
0.7 |
12 |
21.5 |
25 |
10/7.5 |
7 |
1.0 |
| 1.3D-20 |
1.3 |
9 |
21.5 |
25 |
10/7.5 |
7 |
1.0 |
| 2.2D-20 |
2.2 |
8 |
21.5 |
25 |
10/7.5 |
7 |
1.0 |
| 2.5D-20 |
2.5 |
8 |
21.5 |
25 |
10/7.5 |
7 |
1.0 |
| 3D-20 |
3 |
8 |
21.5 |
25 |
10/7.5 |
7 |
1.0 |
| 5D-20 |
5 |
7 |
21.5 |
25 |
10/7.5 |
7 |
1.0 |
| 6D-20 |
6 |
6 |
21.5 |
25 |
10/7.5 |
7 |
1.0 |
| 8D-20 |
8 |
6 |
21.5 |
25 |
10/7.5 |
7 |
1.0 |
| 10D-20 |
10 |
6 |
21.5 |
25 |
10/7.5 |
7 |
1.0 |
| 12D-20 |
12 |
5 |
21.5 |
25 |
10/7.5 |
7 |
1.0 |
| 16D-20 |
16 |
5 |
21.5 |
25 |
10/7.5 |
7 |
1.0 |
| 3D-25 |
3 |
9 |
26.5 |
25 |
10/7.5 |
7 |
1.0 |
| 5D-25 |
5 |
8 |
26.5 |
25 |
10/7.5 |
7 |
1.0 |
| 8D-25 |
8 |
7 |
26.5 |
25 |
10/7.5 |
7 |
1.0 |
| 10D-25 |
10 |
7 |
26.5 |
25 |
10/7.5 |
8 |
1.0 |
优势：
适用于转换电源、开关电源、UPS电源、各类电加热器、电子镇流器、各种电子装置电源电路的保护以及各类显像管、显示器、白炽灯及其它照明灯具的灯丝保护。
特点：
体积小，功率大，抑制浪涌电流能力强。
反应速度快。
材料常数（B值）大，残余电阻小。
寿命长，可靠性高。
系列全，工作范围宽。
|
